In this article, you will learn: How to connect the Gantner GAT Writer 6000 F by serial number
Quick Guide:
-
Settings / Access control / Device Managerr / Add device
-
Choose connection type USB
-
Enter serial number
-
Save
What is a Gantner RFID GAT Writer 6000F?
The Gantner RFID GAT Writer 6000F is a device designed for use in radio frequency identification (RFID) systems. It is a powerful reader and writer of RFID tags that can be used to capture and store data on individual objects and people. The purpose of the GAT Writer 6000F is to provide a secure, reliable way to manage access to and collect data from RFID tags in a variety of applications, such as access control.
The Gantner GAT Writer 6000F is one of the commonly used RFID Reader of PerfectGym Next customers.
How to connect the device?

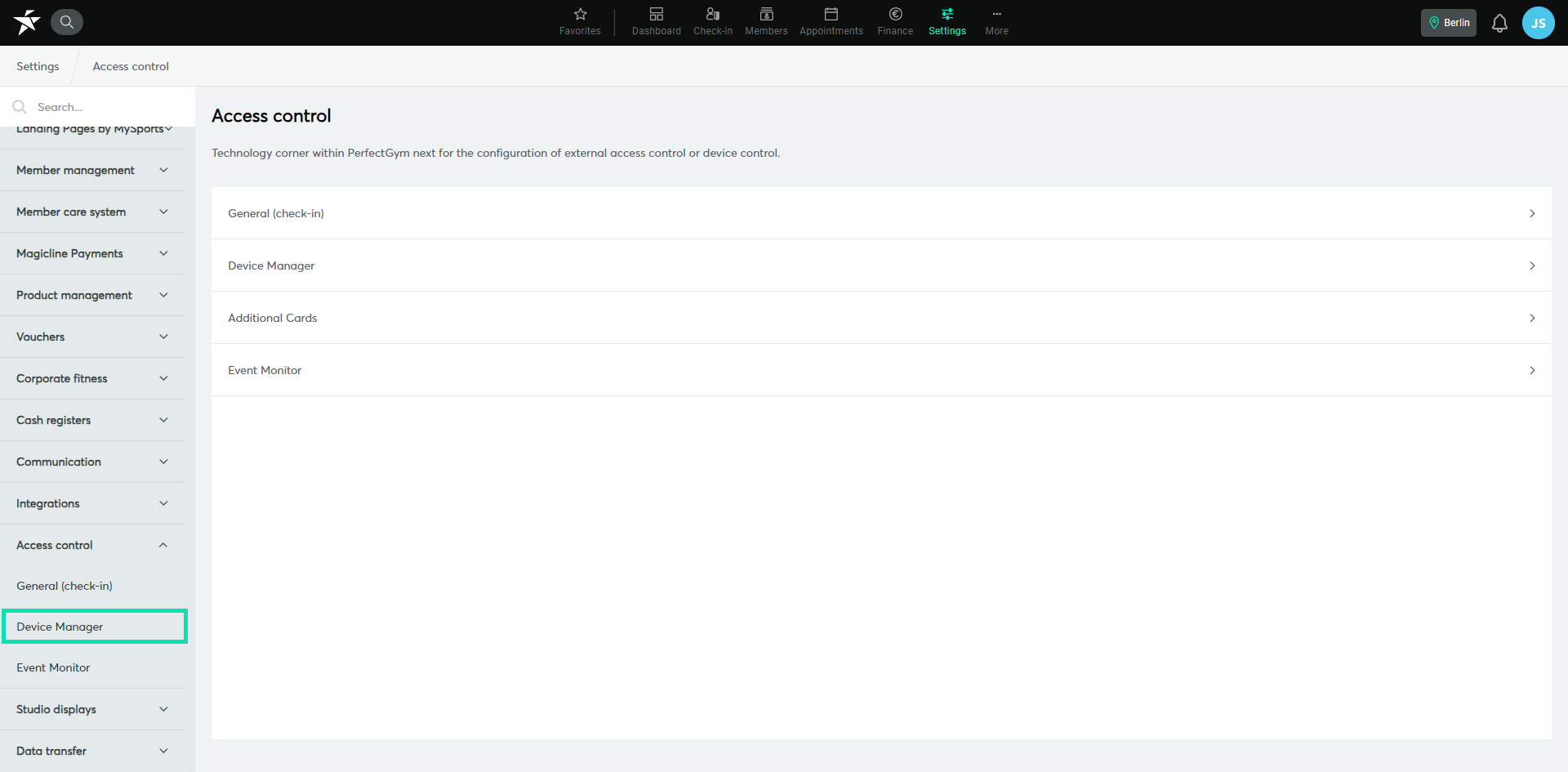

1. Go to the Settings / Access control / Device Manager

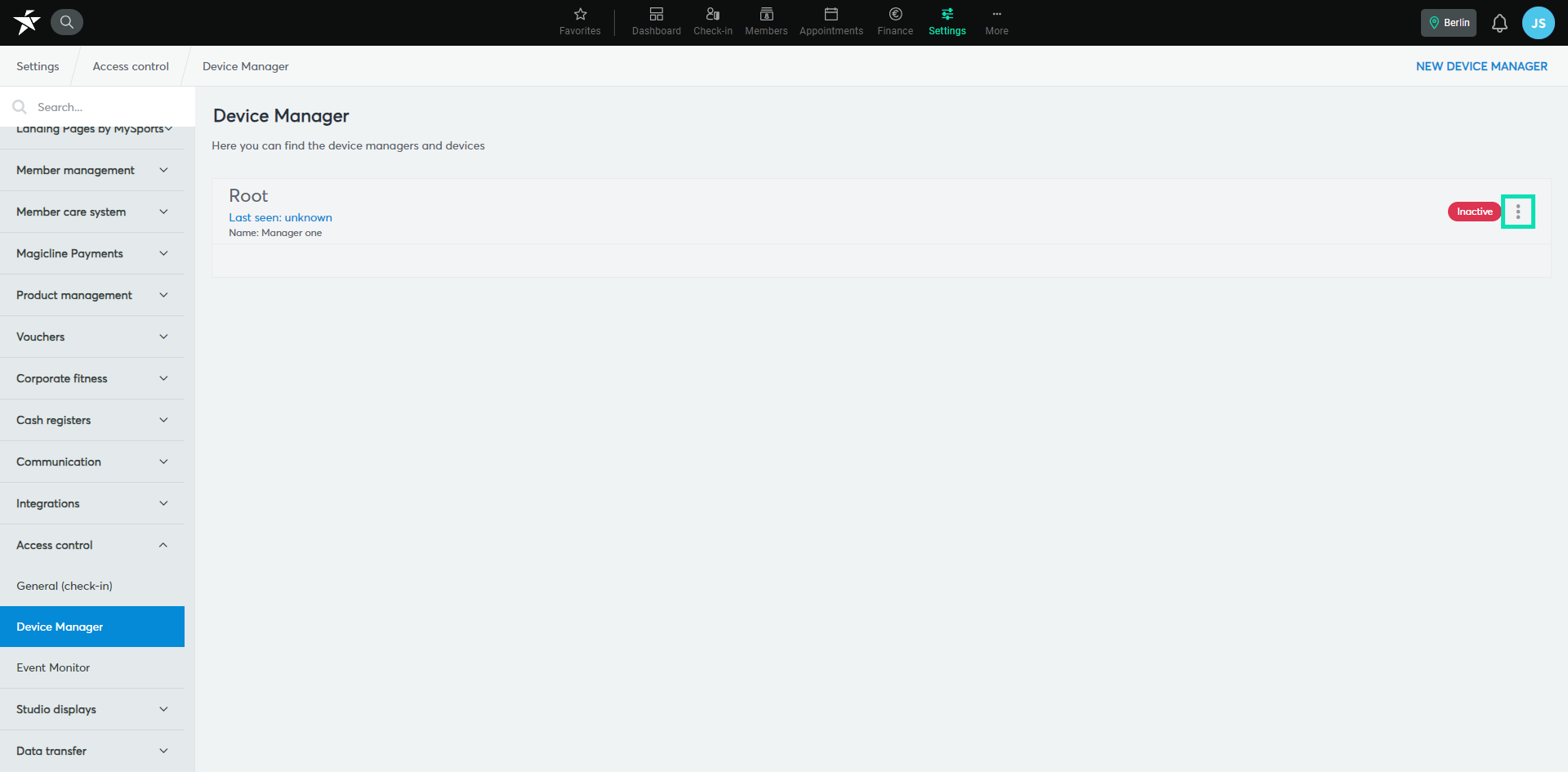

3. Choose the 3-dot menu of your device manager

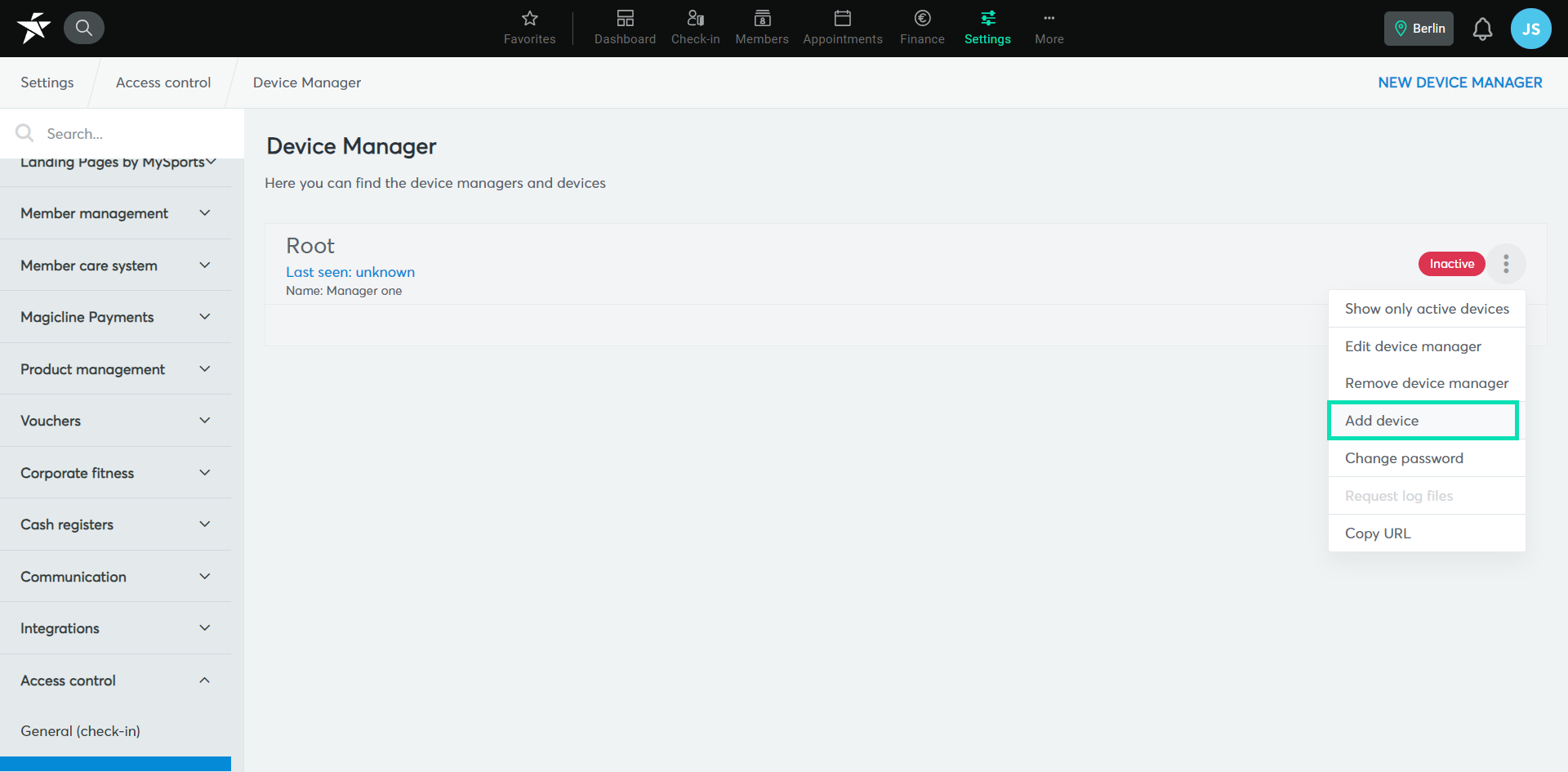

4. Click “Add device”

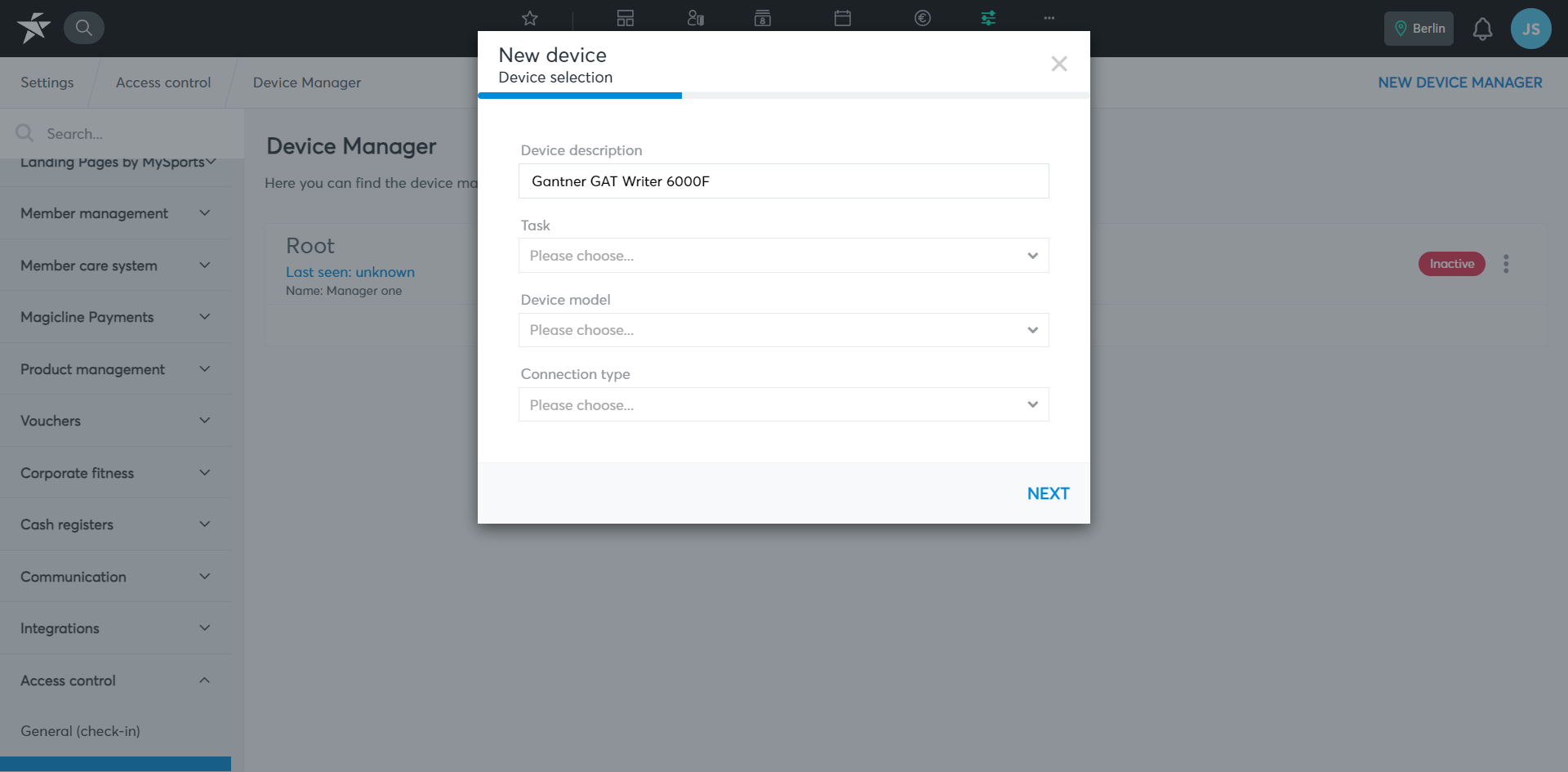

5. Give your device a descriptive name.

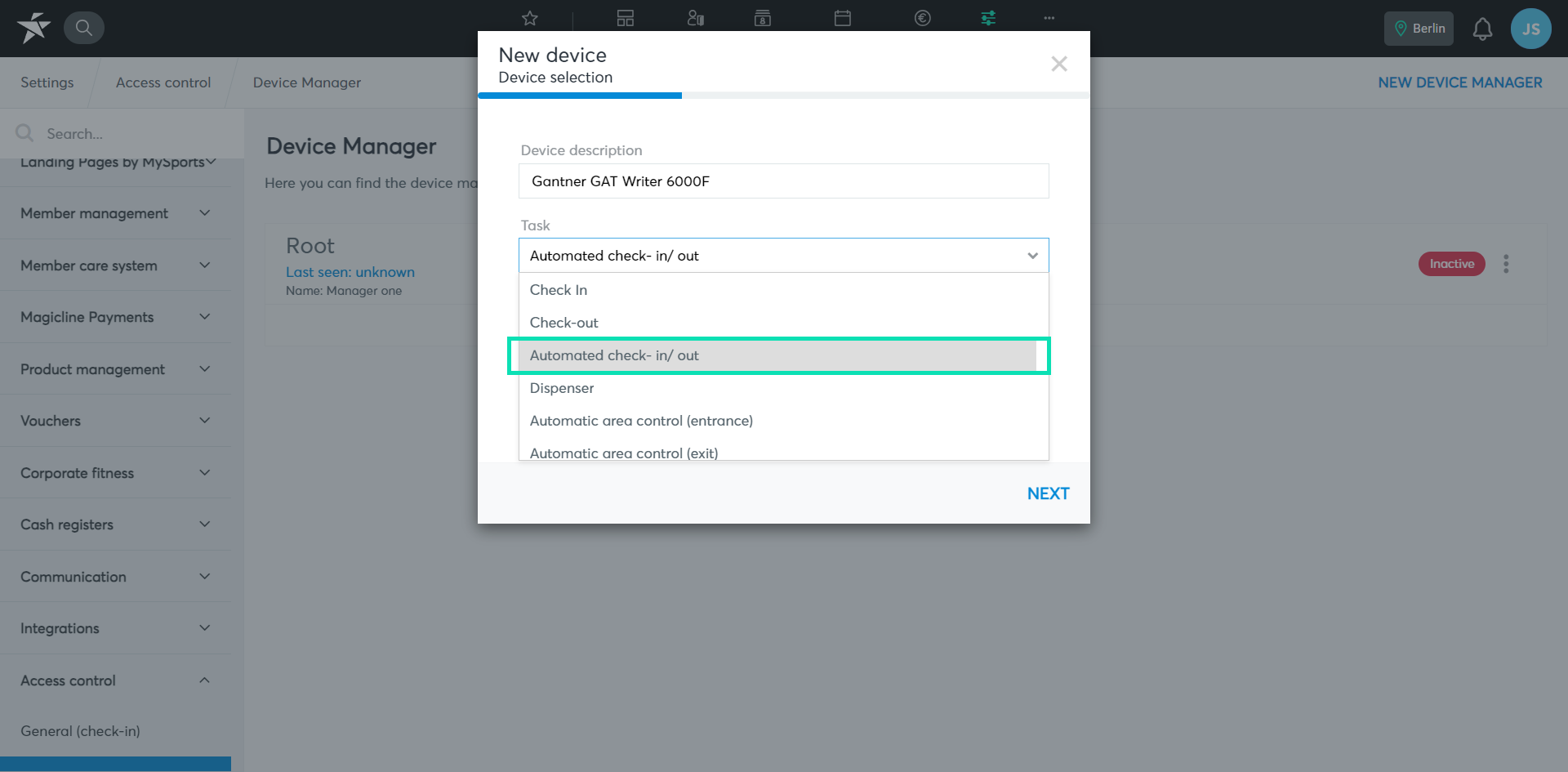

6. Choose a task
In this example, we choose “automatic check-in / out”.

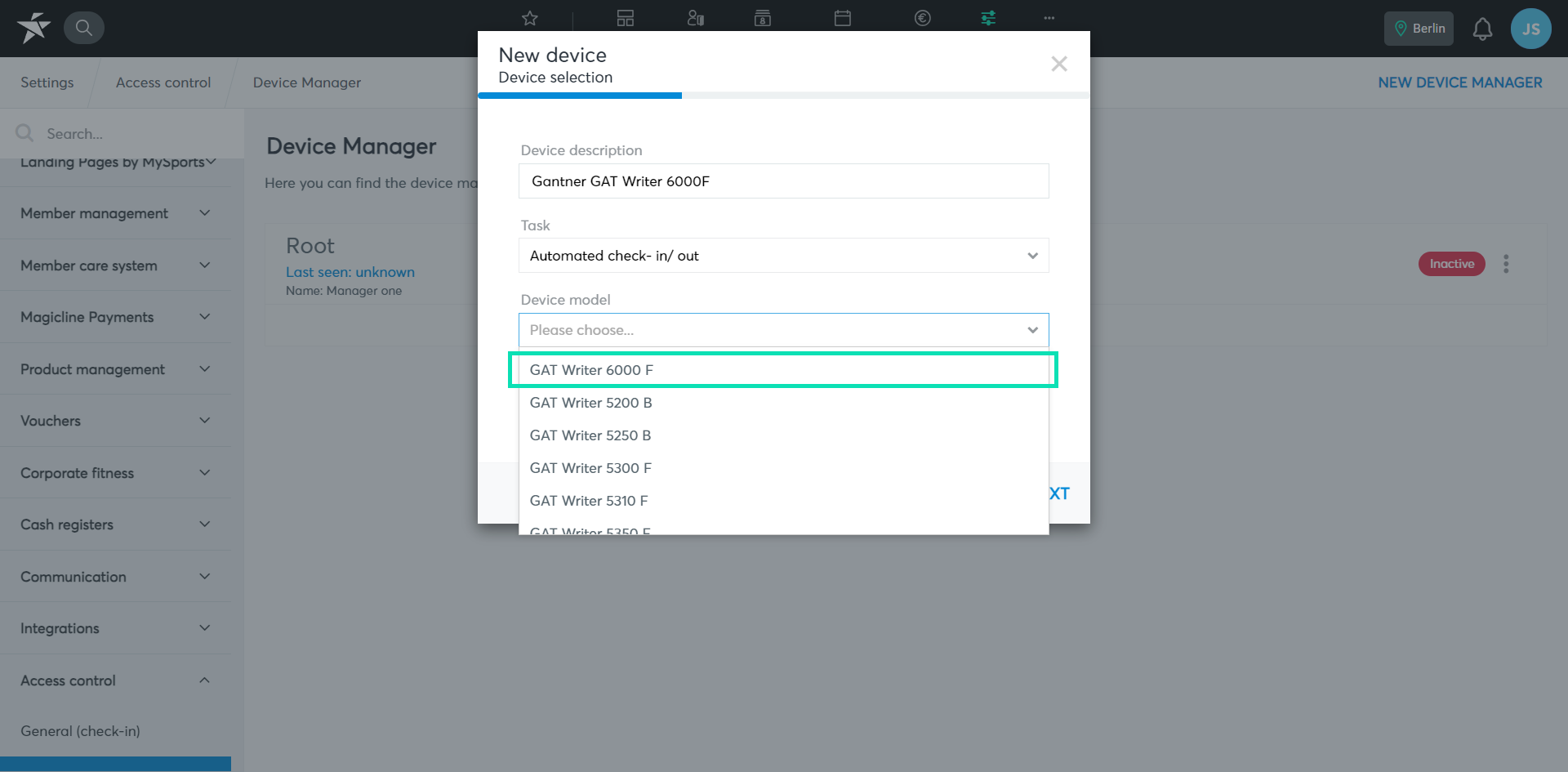

7. Choose the GAT Writer 6000F.

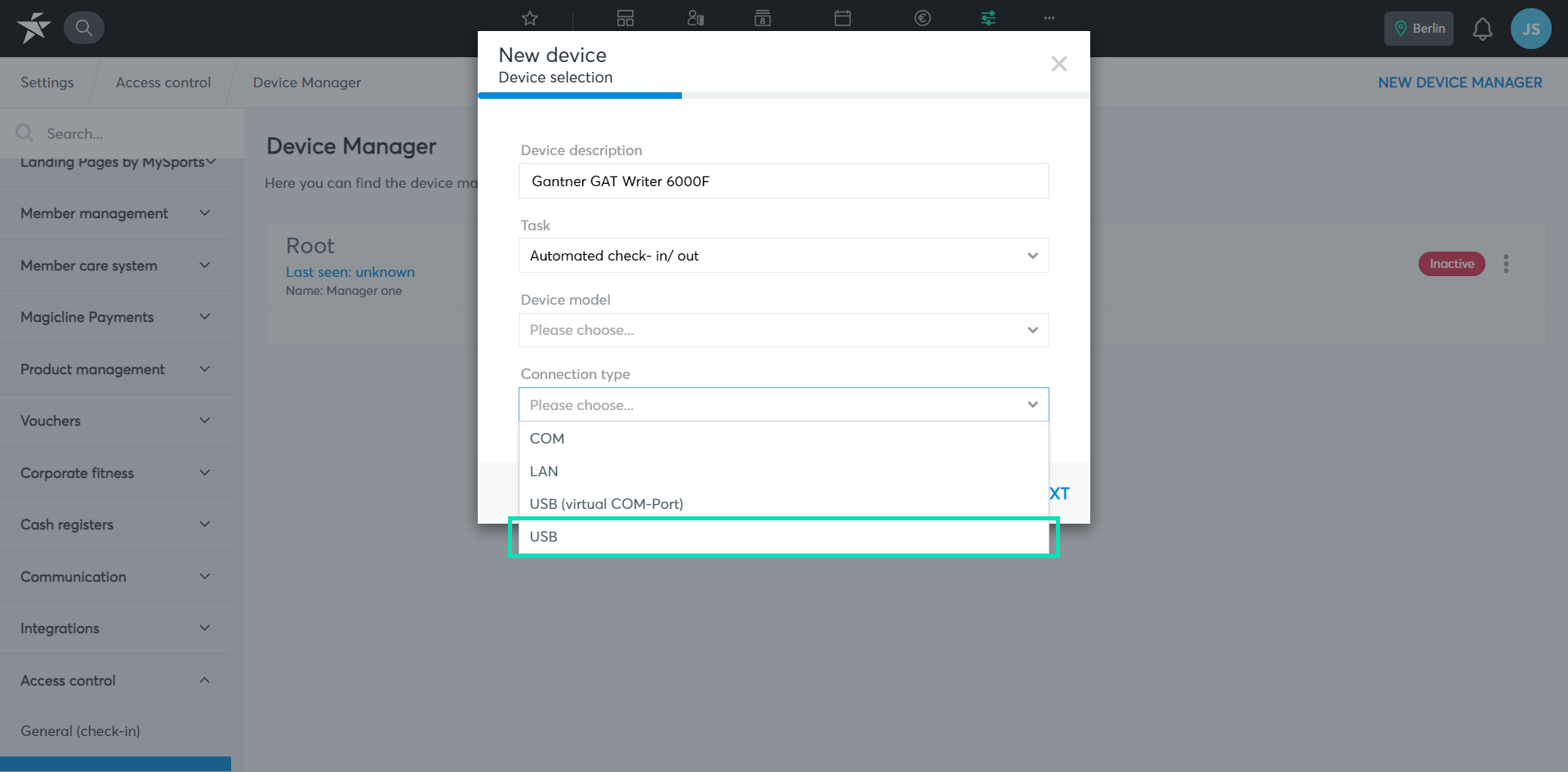

8. Select “USB” as connection type and click “Next”.
Do not choose “USB (virtual COM-Port)"!

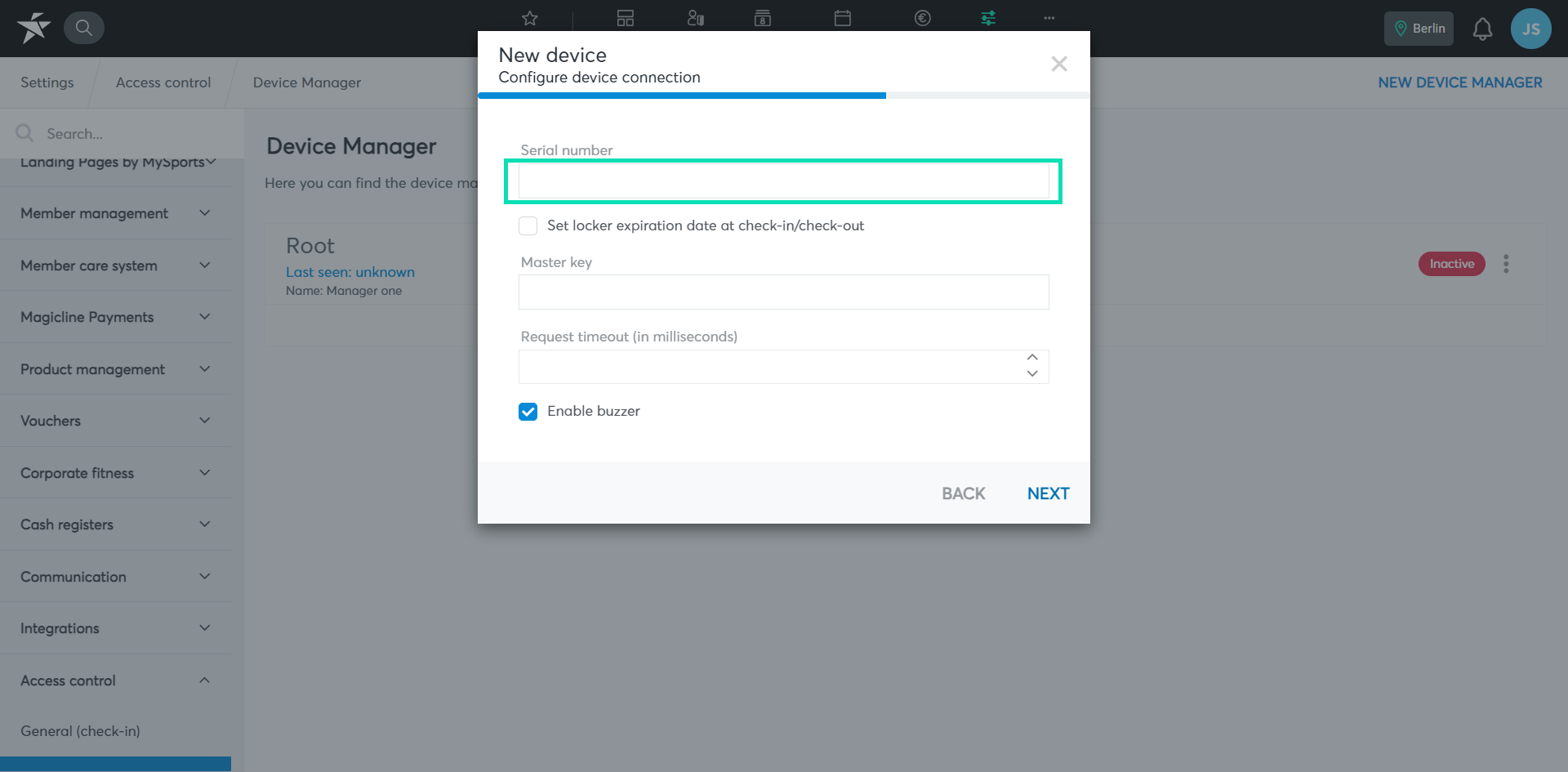

9. Enter the device serial number
You can find the serial number on the backplate of the GAT Writer 6000F or on the invoice. Then click “Next”.

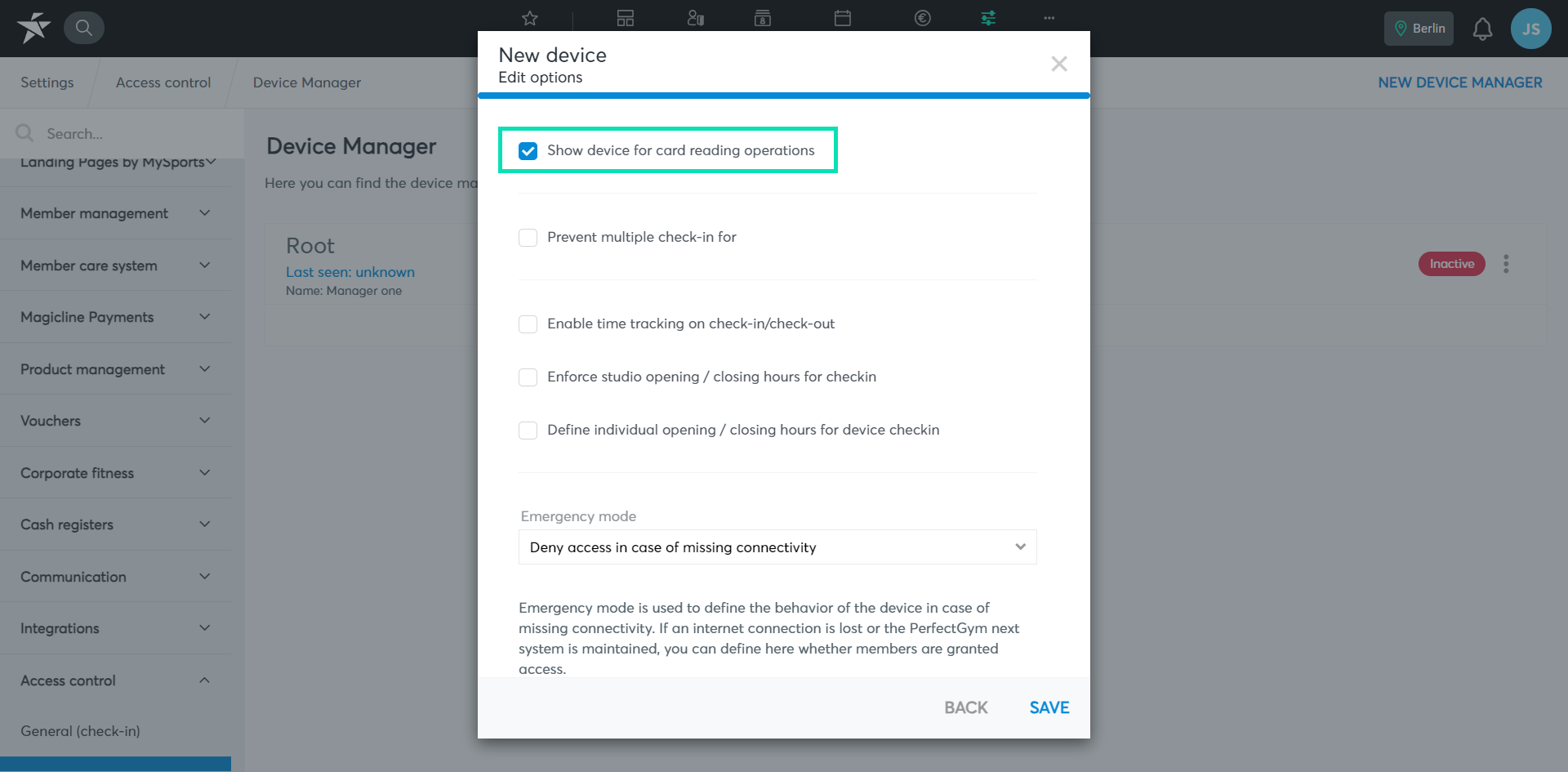

10. Check “Show device for card reading operations”
This enables the card reader to assign member cards, to check members in via the PerfectGym Next dashboard and in the “sales” section as well.
This makes only sense to use for “manual check-in / out”.

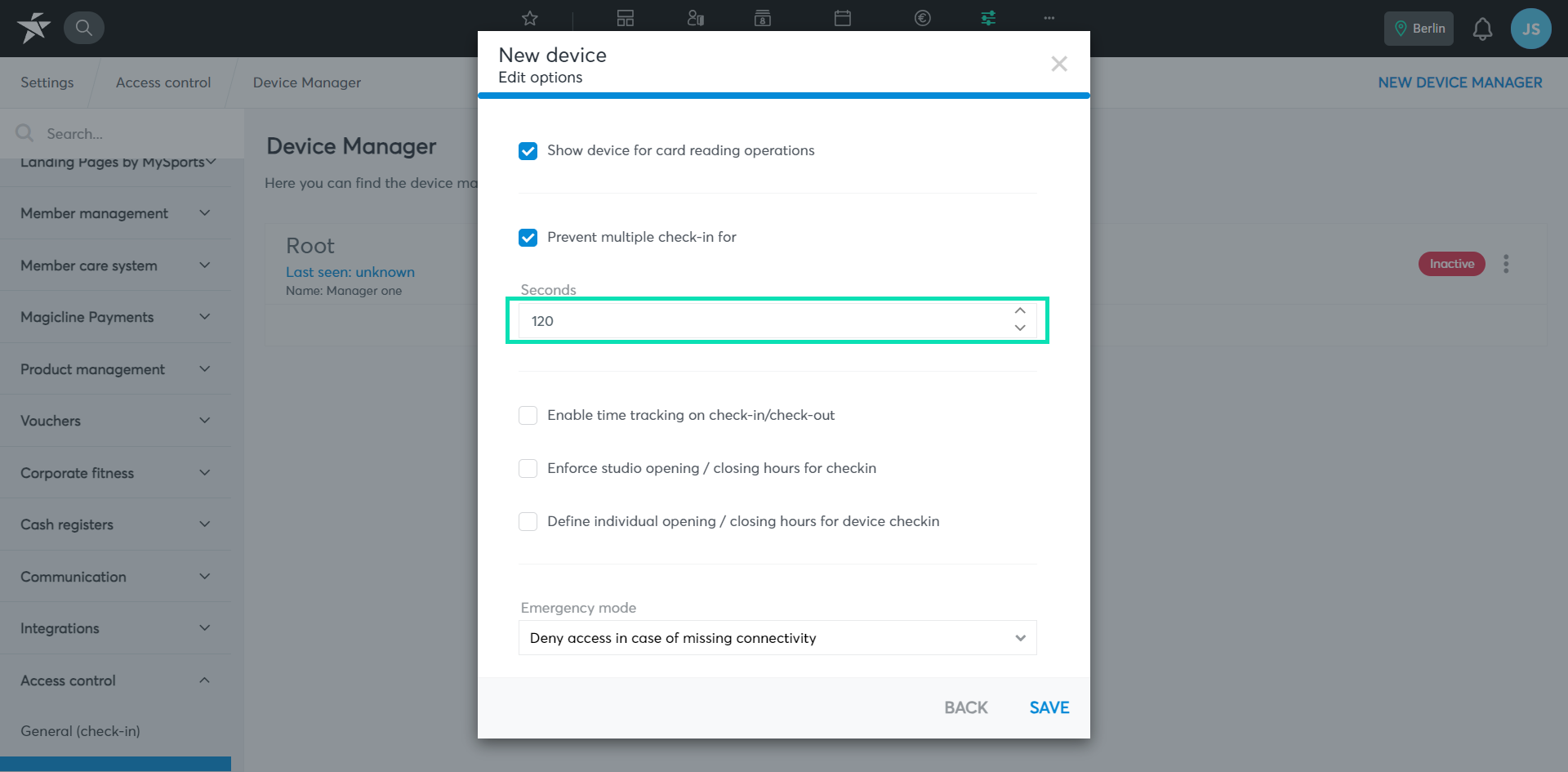

11. Check “Prevent multiple check-in for x seconds”
This enables that multiple check-in readings are blocked. This is only useful for “automatic check-in / out”.

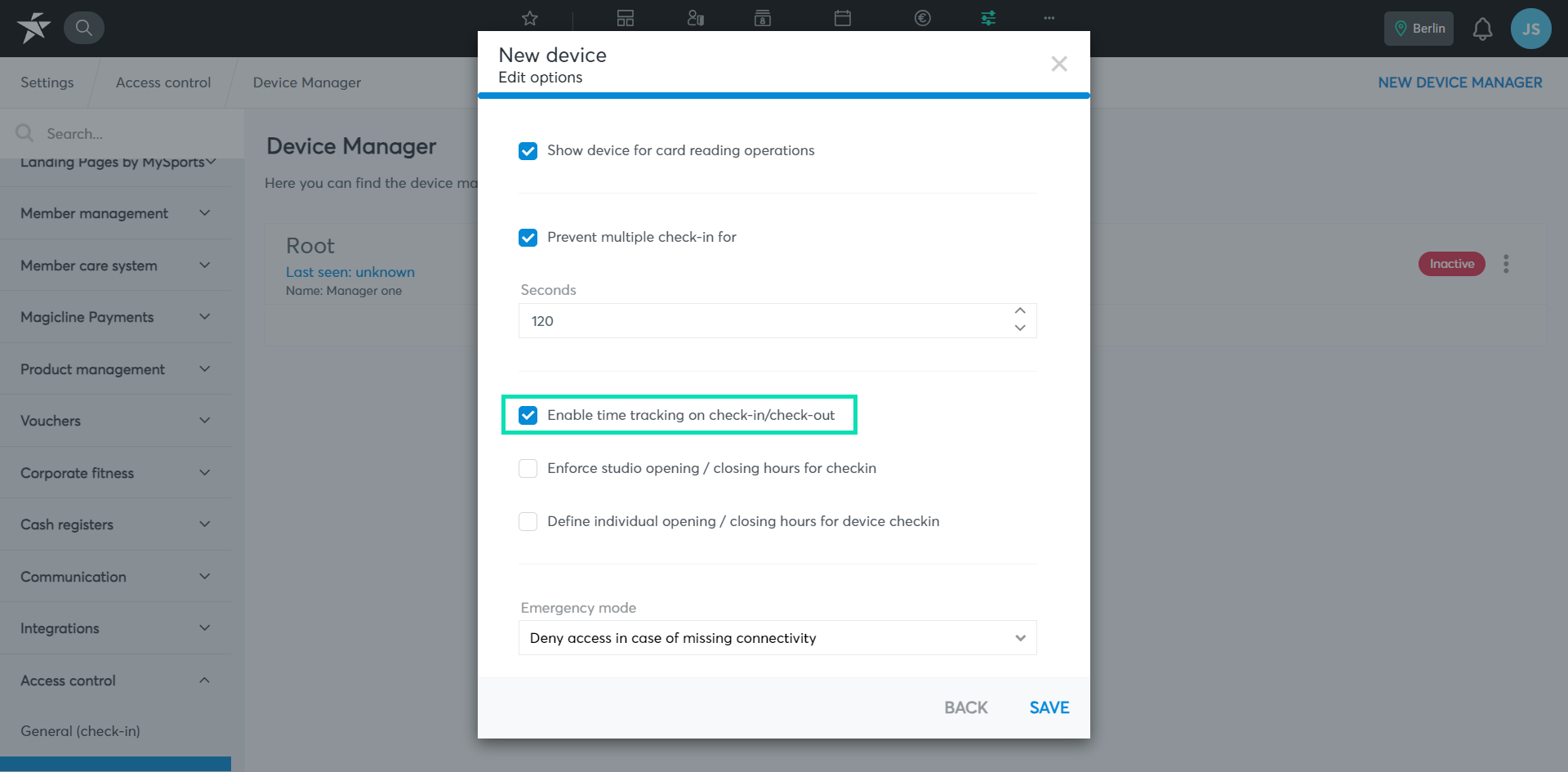

12. Check “Enable time tracking on check-in/check-out”
This enables the time tracking feature of the reader. Only available for ULTIMATE users.
13. Click on “Save”
