In this article, you will learn how to optimally set up the Zebra DS2208 barcode scanner to use it seamlessly with our software. Step by step, you will see how to configure the device correctly and why this solution makes your studio more efficient.
Contents of this article:
- Device description
- Initial setup
- Select connection type
- Scan barcodes for configuration
- Activate presentation mode
- Check configuration
Fast lane
Here’s how to set up your Zebra DS2208 scanner in just a few steps:
- Connect the scanner to your computer via USB.
- Scan the “Set to Factory Defaults” barcode.
- Scan the “SSI over USB CDC” barcode.
- Scan the “Data Transmission Format” barcode.
- Scan the “Code-ID Prefix” barcode.
- (Optional) Scan the “Presentation Mode” barcode if you want automatic scanning.
- Unplug the scanner briefly and reconnect it.
Device description
The Zebra DS2208 is a 1D and 2D imager scanner that reliably reads both printed barcodes and digital codes (e.g., on displays). Thanks to the flexible stand, you can scan either hands-free or manually.
The scanner offers several connection options:
- USB (standard for Magicline)
- Virtual COM port via USB
- RS232 (rarely used)
It is ideal for identifying members via QR or barcode and transferring data seamlessly into your Magicline account.
Initial setup

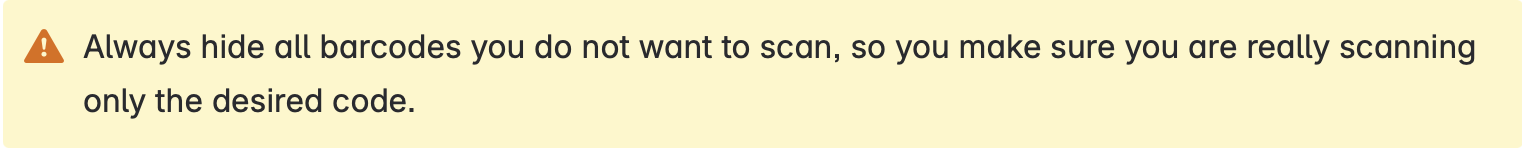

Before you start, connect the scanner to your computer via USB. The device will be detected automatically. Please disable any barcodes you do not want to use to avoid scanning incorrect configurations by accident.
Select connection type
For use with our software, you need to configure the scanner as a virtual COM port. This ensures that the SportAlliance Device Manager can correctly process incoming scans.
Placeholder for barcode: SSI over USB CDC
Scan barcodes for configuration
To make sure your scanner works correctly, scan the following barcodes in this order:
-
Set to Factory Defaults
This barcode resets all previous settings.
-
SSI over USB CDC
Enables COM port mode.
-
Data Transmission Format
Adds a return character (\r) to the transmitted string, which is required for processing in the software.
-
Code-ID Prefix
Enables a prefix to identify the barcode type.
Activate presentation mode
By default, the device only scans when you press the trigger. If you want the scanner to operate in presentation mode (automatic scanning when a code is detected), scan this barcode:
If you want to return to manual scanning later, scan this barcode:
Check configuration
After you have scanned all barcodes, briefly unplug the scanner and plug it back in. This ensures that all settings are applied correctly.
Now your Zebra DS2208 is ready to reliably capture barcodes and transfer data directly into our software – for faster and more accurate member management.
