Create and set up a cash register

This article is about: Creating and setting up a cash register

• Why do you need to configure a cash register?
• Install receipt printer
• Create a cash register
• Create product groups
• Create product

Quick guide:

Install a receipt printer:

1. Settings / Cash registers / Receipt printer
2. "Add printer"

Create a cash register:

1. Settings / Cash registers/ Cash registers
2. "Create cash register"

Add a product group:

1. Settings / Product management / Product groups
2. "Add product group"

Add products:

1. Settings / Product management / Product
2. "Add product"

Why do you need to configure a cash register?

With Magicline you can easily manage sales thanks to the integrated payment function. The following steps have to be done before the cash register can be activated.

Install receipt printer

If you have one, you can install a receipt printer.

Under Settings / Cash registers / Receipt printer, you enter all receipt printers used in the system, which are then linked to existing cash registers. Depending on the printer, different connection options are available.

• USB
• Web Print / IP
• Bluetooth

Note: If you are using an iPad or tablet to sell something, you will need a Bluetooth printer for the receipt.

Create cash register

To use your cash register, you need to create a cash register digitally (or have many in your studio). To do this, click on "Create Cash Register" and fill out the information: Name and Description. Each cash register created here will automatically have its own cash book. When you create a new cash register, you can enter a specific name to easily distinguish it. It is important that you already create a printer under Receipt Printer to be able to select it when you create your cash register.

Create product groups

To link your cash register to your products, you must first create a product group using the "product groups" menu. The product groups created here will automatically appear that way in the cash register. It facilitates sales by grouping similar products in only one place.

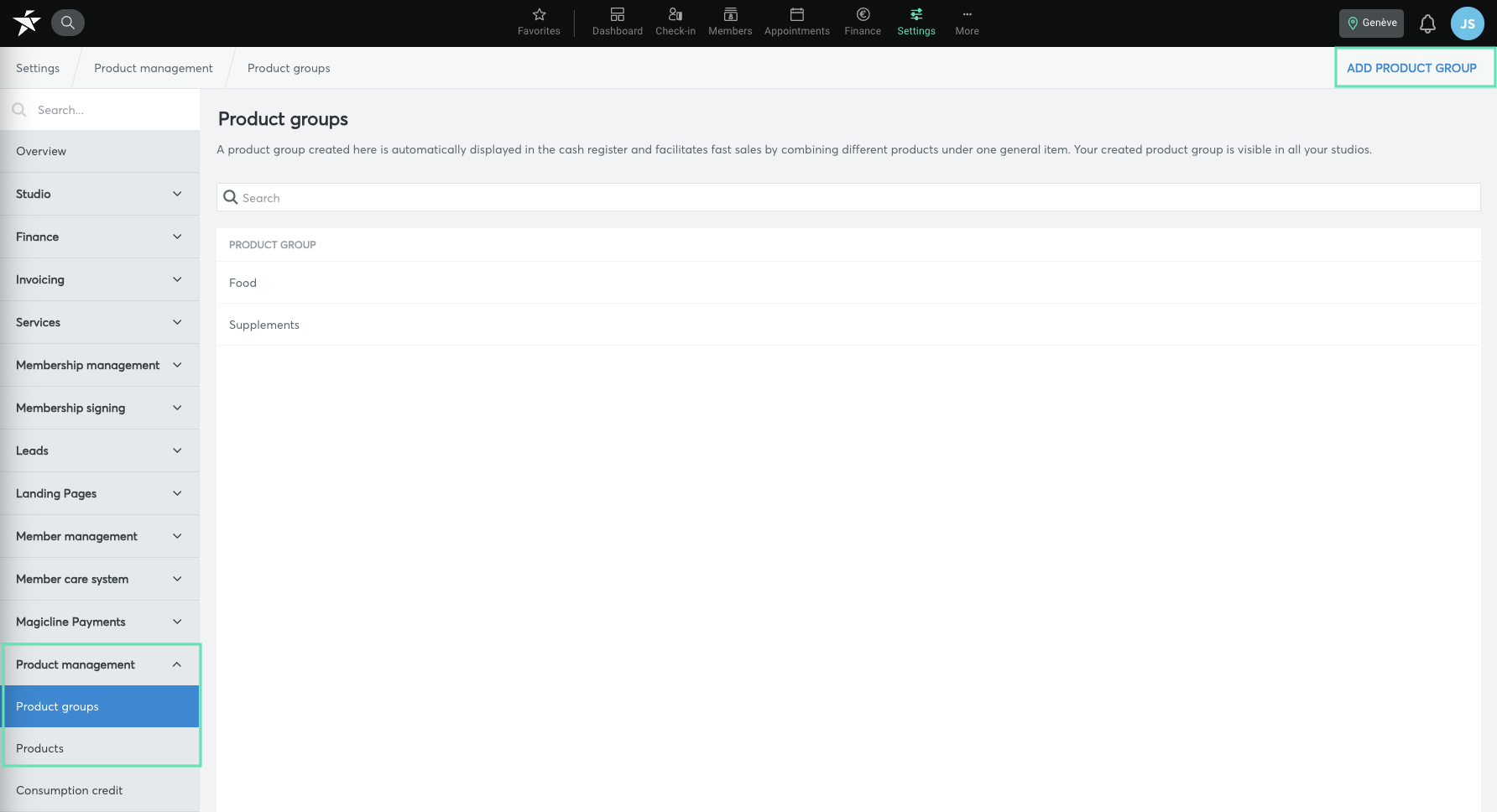

Go to Settings / Product Management / Product groups

Example of product groups:

• Product group Beverages
• Product group Snacks
• Clothing merchandise group

Create products

Here, you define products that you want to offer for sale. You can set a standard price, but also set a specific price for a group of customers. To set up the product here, you must first set up the product group. Here you assign your products to a product group.

Go to: Settings / Product management / Products

To add a product, click on "Add product" in the upper-right corner, there you define the name of the product, the product group and select the VAT. Here, you can also specify whether a deposit is required for this product or not.

To edit the product, you need to click on the three-dot menu to the right of your product.

Create Product Variants

To add a product variant, click on the line of the product name and on Add Variant in the upper-right corner. Give it an Article number and a default price. The EAN corresponds to the barcode of your product. So if you have a scanner, it is possible to link it to Magicline. By clicking on "In stock" you can track the remaining quantity of the product in question. You can see the stock level directly on the product page, but also in the Sale.

Note: To add a special price for your product (as a VIP), click on the three-dot menu and then on Add price.
