In this article, you will learn how to configure your Finion Pay Vending Terminal step by step in our software and physically install it on your vending machine.
Contents
- Preparation
- Configuration in our software
- Physical Installation on the Vending Machine
- Final Setup of the Terminal
Quick Guide
- Check prerequisites: Ensure that Finion Pay is activated and the desired product variants are created in our software.
- Create device in our software: Go to Settings / Access Control / Device Manager and add a new device. Select "Vending machine" as the task and "Finion Pay S1U2" as the model.
- Configure device: Enter the terminal's serial number, set the payment options, and assign the products to the corresponding slots of your vending machine.
- Mount terminal: Attach the terminal to the vending machine and connect it according to the connection diagram.
- Set up terminal: Connect the terminal to the internet, open the admin menu, and enter your tenant name to complete the pairing with our software.
Preparation
Before you begin the installation, make sure you have all the components of your Finion Pay Vending bundle ready:
- S1U2 Unattended Vending Terminal
- MDB-to-USB Interface
- Necessary cables (including USB-C to USB-B) and adapters (DC plug)
- 4G Internet Antenna
- Mounting plate set
Additionally, the product variants you wish to sell must be created and enabled for your location in our software. Finion Pay must also be activated for your studio.
Configuration in our software
Important: Configure the terminal completely in our software before you turn it on and connect it to the vending machine. This ensures proper commissioning.
Step 1: Add Device
- Navigate in our software to Settings / Access Control / Device Manager.
- In the device manager for Finion Pay, click on the context menu and select Add Device.
- Assign a unique name to your device.
- Select "Vending machine" as the Task and "Finion Pay S1U2" as the Device model.
- The Connection type is "Device API".
Step 2: Set Parameters
- Password: Set a password to access the admin menu directly on the terminal. The default is "1234".
- Show purchase confirmation: Activate this option if members should see a confirmation page before payment.
- Identification methods: Specify whether sales via RFID and/or QR code should be possible. If both options are deactivated, members can only pay by card (e.g., Apple Pay, Google Pay).
Step 3: Additional Configuration
- Card terminal serial number: Enter the serial number found on the terminal or its packaging (Format: S1U2-xxxxxxxxxxxxx).
- Payment option: Define the available payment functions.
- Product variant to shelf configuration: Assign the corresponding product variant from our software to each slot of your vending machine. Attention: Enter the internal slot number of the machine here, as it may differ from the visible number. If you are unsure, contact the manufacturer of your vending machine.
- Vending machine idle time (ms): Define how long the terminal waits for user input before the sales process is canceled.
- Vending machine product access time (ms): Define how long the terminal waits for confirmation that a product has been dispensed before the purchase is canceled and refunded.
- Click on Save to complete the configuration.
Physical Installation on the Vending Machine
After the configuration in our software is complete, the next step is to connect the terminal to your snack or coffee machine.
- Mount Terminal: First, use the included mounting plate set to attach the S1U2 terminal securely to your vending machine.
- Connect Components: Then, connect the vending machine to the terminal as described in the following diagram and the accompanying steps.
Practical Example: Wiring Step-by-Step

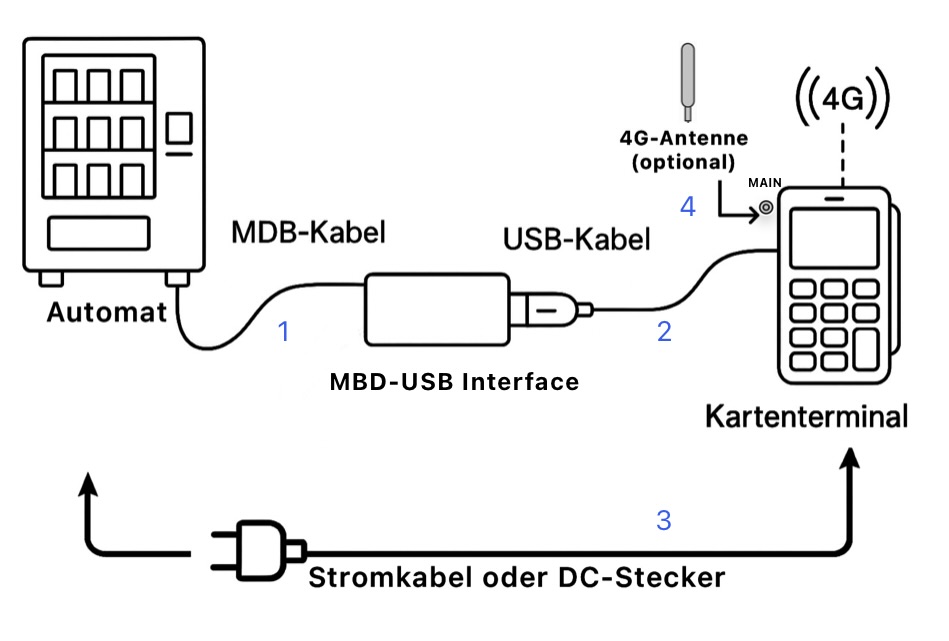

The connection between your vending machine and the Finion Pay terminal is made via the MDB-to-USB interface. The following diagram shows you the exact setup.
- (1) MDB Cable: Connect the MDB port of your vending machine (often labeled "VMC") to the MDB-to-USB interface. This cable transmits the sales data.
- (2) USB Cable: Connect the MDB-to-USB interface to the card terminal using the supplied USB-C to USB-B cable.
- (3) Power Supply: Connect the terminal to the power supply. This can be done either directly via a DC plug on the vending machine or through an external power adapter.
- (4) 4G Antenna (optional): If stable Wi-Fi or Ethernet is not available at the location, connect the 4G antenna to the "MAIN" port of the terminal to improve cellular reception.
Final Setup of the Terminal
The following steps must be carried out on the Finion Pay Vending Terminal.
- Power On & Connect: After mounting and wiring, turn on the terminal. Follow the on-screen instructions to connect the device to the internet (Wi-Fi, Ethernet, or 4G).
- App Start: In the background, an app will automatically be installed and started. Confirm the app’s request to access the USB port. The app has started correctly if you see the error message “Could not retrieve configuration from Magicline.” You can now proceed with the next step.
- Open Admin Menu: Tap the top-left corner of the screen four times in quick succession to open the admin menu.
- Enter Password: Enter the default password 1234. Next time, it will be the password you have stored in Magicline.
-
Connect Tenant: In the admin menu, enter your tenant name under Tenant and click "Save". You can find your tenant name in the URL of our software: `https://TENANT_NAME.web.magicline.com/`
- Finalize & Test: Close the menu. The terminal is now paired with our software and ready for use. Finally, perform a test sale to verify that it is functioning correctly.
